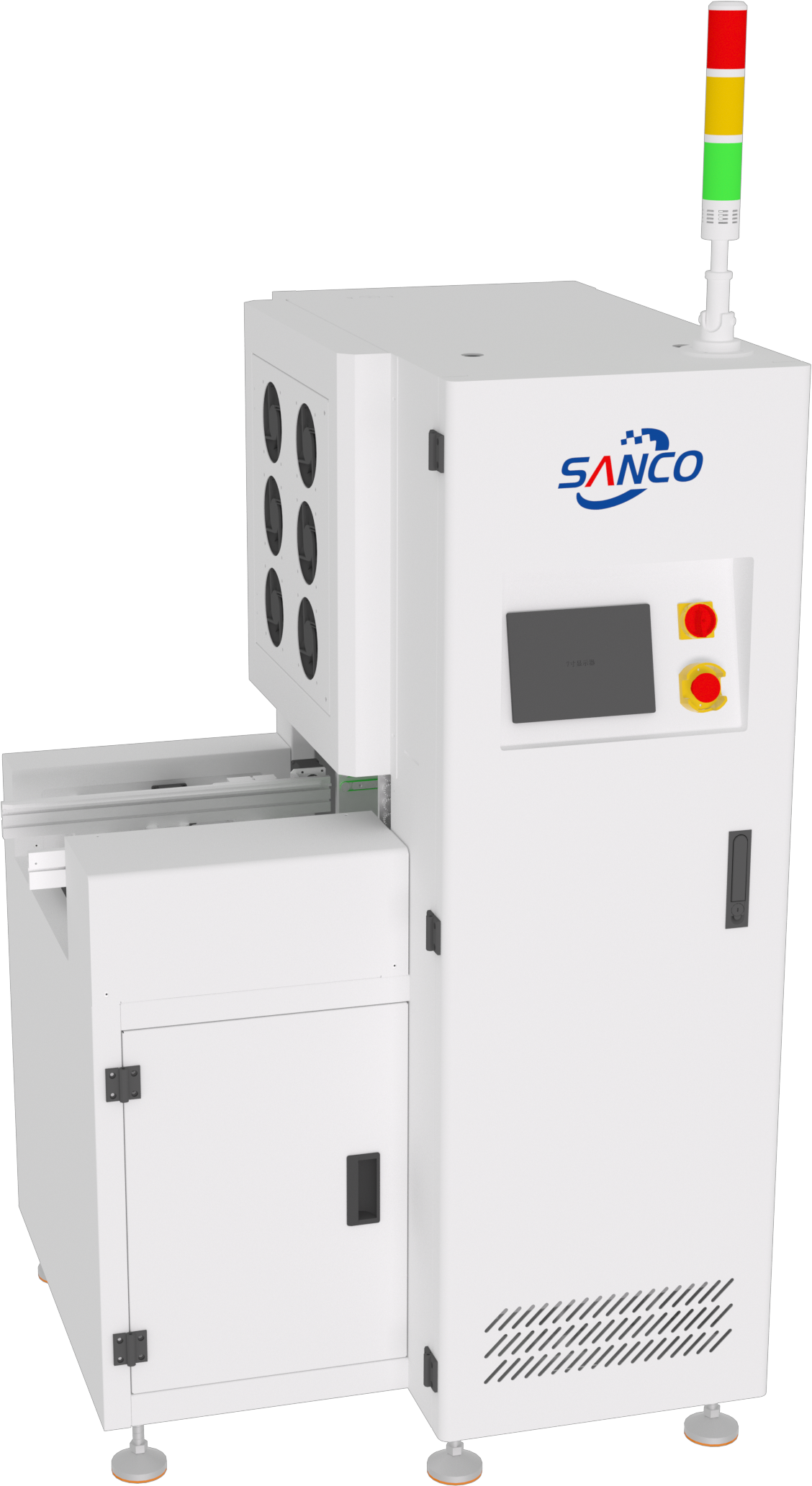

Vertical Cooling Buffer Conveyor
Vertical cooling buffer conveyor designed for PCB buffering and rapid cooling. Integrated PLC touch control, servo lifting system, and high-speed cooling fans for stable flow control and efficient thermal management.
Product Description
The Vertical Cooling Buffer Conveyor is designed for PCB buffering and rapid cooling during production flow. By combining vertical storage with forced cooling, it helps stabilize line rhythm while effectively reducing board temperature before downstream processes.
The system features a PLC control system with a 7-inch color touch screen for intuitive operation and real-time monitoring. It supports both first-in-first-out (FIFO) and last-in-first-out (LIFO) operating modes, providing flexible buffer management for different production requirements.
High-speed cooling fans are installed at both upper and lower sections, enabling fast and uniform cooling during buffering. The servo motor lifting system ensures precise vertical positioning, while the standard SMEMA communication interface allows seamless integration with other equipment.
Technical Highlights
Key specifications that define excellence
Temporary buffer capacity
PCB width range
Working height
Vertical lifting system
PCB thickness support
Total power consumption
Key Features
Advanced vertical buffering and cooling technology for SMT production
Vertical Buffering & Cooling
Combines PCB buffering with rapid cooling to optimize production flow.
FIFO & LIFO Operation
Supports both first-in-first-out and last-in-first-out operating modes.
PLC Touch Screen Control
PLC system with 7-inch color touch screen for easy operation.
Servo Lifting System
Fast and accurate vertical positioning with servo motor control.
High-Speed Cooling Fans
Upper and lower cooling fans ensure fast and uniform heat dissipation.
SMEMA Communication Interface
Standard interface for smooth equipment connection.
Related Products
Explore other SMT line connection equipment
Specification
Used for board buffering between SMT equipment
| Item | Specification | Item | Specification |
|---|---|---|---|
| Model | SC-460C | Guide rail fixing method | 1 track fixed, 2 tracks mobile |
| Circuit board size (mm) | Width 50~350mm | Control method | PLC+7-inch touch screen control |
| Machine dimensions (mm) | L1000*W930*H1500mm | Conveyor motor | 42 Stepper Motor |
| Working height (mm) | 900±20 mm | Lifting motor | 750W servo motor lifting |
| power supply | AC220V, 50HZ | Width adjustment method | Ball screw automatic width adjustment |
| power | 1.2KW | Signal communication interface | Standard SMEMA interface |
| Equipment weight | About 200KG | Circuit board thickness | 0.6 ~ 6mm |
| Transmission Type | Anti-static flat belt transmission | Carrier weight | ≤1.5kg |
| Transmission direction | Left to right/right to left (optional) | Air pressure and air flow | 4-6bar |
