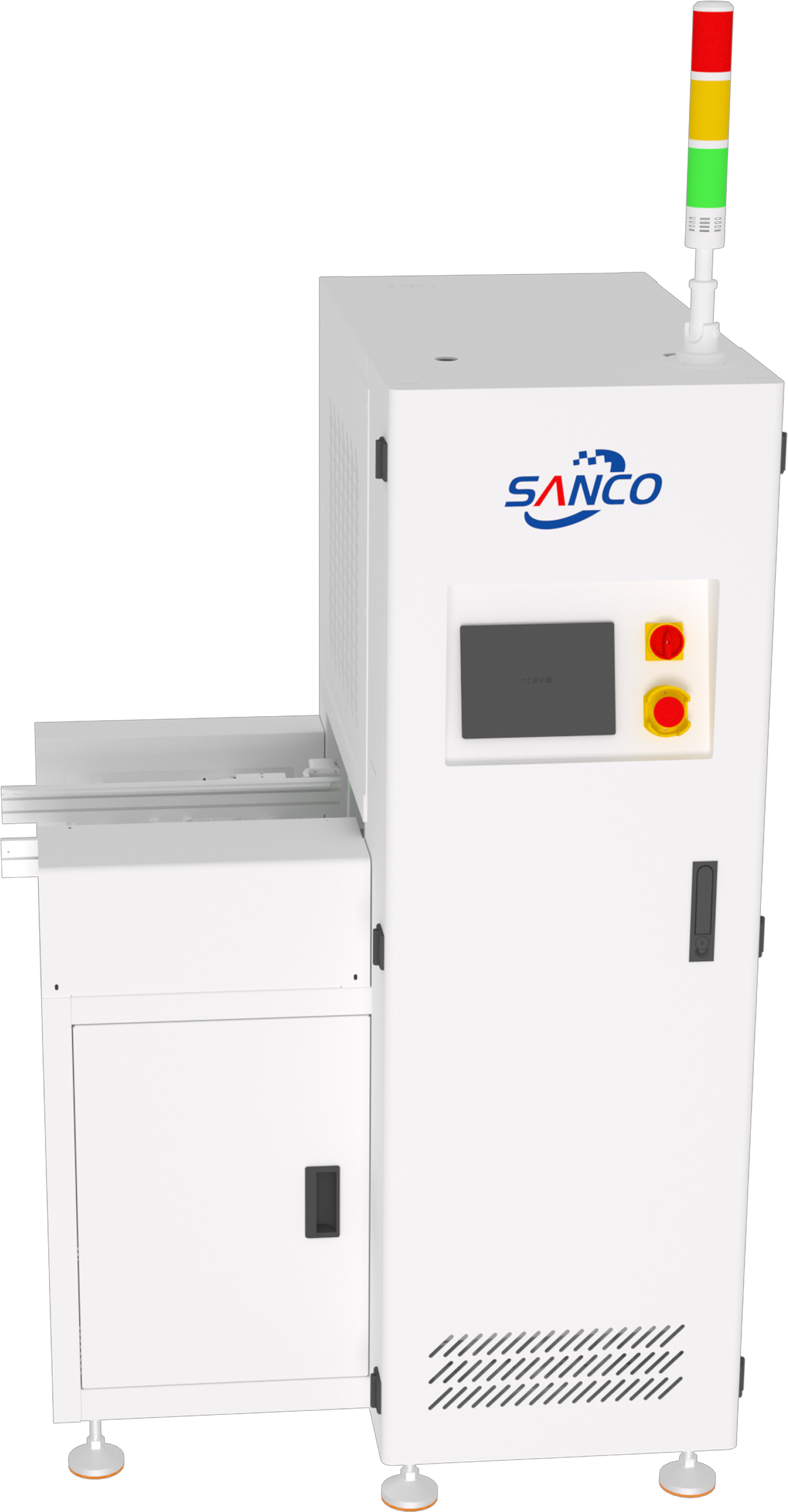

Vertical Buffer Conveyor
Vertical buffer conveyor designed for temporary PCB buffering and flow control. Featuring PLC touch screen operation, servo lifting system, and high-capacity vertical storage for stable and efficient board handling.
Product Description
The Vertical Buffer Conveyor is designed for temporary PCB buffering and flow balancing in automated production lines. It enables efficient accumulation and release of circuit boards, helping stabilize line rhythm and prevent bottlenecks between processes.
Equipped with a PLC control system and a 7-inch color touch screen, the system provides intuitive operation and real-time status monitoring. It supports both first-in-first-out (FIFO) and last-in-first-out (LIFO) operating modes, allowing flexible production management.
The servo motor lifting system ensures fast, stable, and precise vertical positioning. With multiple buffer pitches for temporary storage and a standard SMEMA communication interface, the Vertical Buffer Conveyor integrates seamlessly with upstream and downstream equipment.
Technical Highlights
Key specifications that define excellence
Vertical buffer capacity
PCB width range
Standard working height
Vertical lifting drive
PCB thickness support
Maximum PCB load
Key Features
Advanced vertical buffering technology for SMT production
Vertical Buffer Storage
Designed for temporary PCB buffering to balance production flow.
FIFO & LIFO Modes
Supports both first-in-first-out and last-in-first-out operation modes.
PLC Touch Screen Control
PLC control system with 7-inch color touch screen for easy operation.
Servo Lifting System
High-precision servo motor ensures fast and accurate vertical positioning.
Automatic Width Adjustment
Ball screw automatic width adjustment for quick PCB alignment.
SMEMA Communication Interface
Standard SMEMA interface for seamless equipment integration.
High-Capacity Storage
20-pitch buffer capacity provides ample temporary storage for production flow management.
Real-Time Status Monitoring
Touch screen displays buffer level and system status in real-time for effective monitoring.
Related Products
Explore other SMT line connection equipment
Specification
Used for board buffering between SMT equipment
| Item | Specification | Item | Specification |
|---|---|---|---|
| Model | SC-460 | Guide rail fixing method | 1 track fixed, 2 tracks mobile |
| Circuit board size (mm) | Width 50~350mm | Control method | PLC+7-inch touch screen control |
| Machine dimensions (mm) | L580*W880*H1050mm | Conveyor motor | 42 Stepper Motor |
| Working height (mm) | 900±20 mm | Lifting motor | 750W servo motor lifting |
| power supply | AC220V, 50HZ | Width adjustment method | Ball screw automatic width adjustment |
| power | 1.0KW | Signal communication interface | Standard SMEMA interface |
| Equipment weight | About 200KG | Circuit board thickness | 0.6 ~ 6mm |
| Transmission Type | Anti-static flat belt transmission | Carrier weight | ≤1.5kg |
| Transmission direction | Left to right/right to left (optional) | Air pressure and air flow | 4-6bar |
