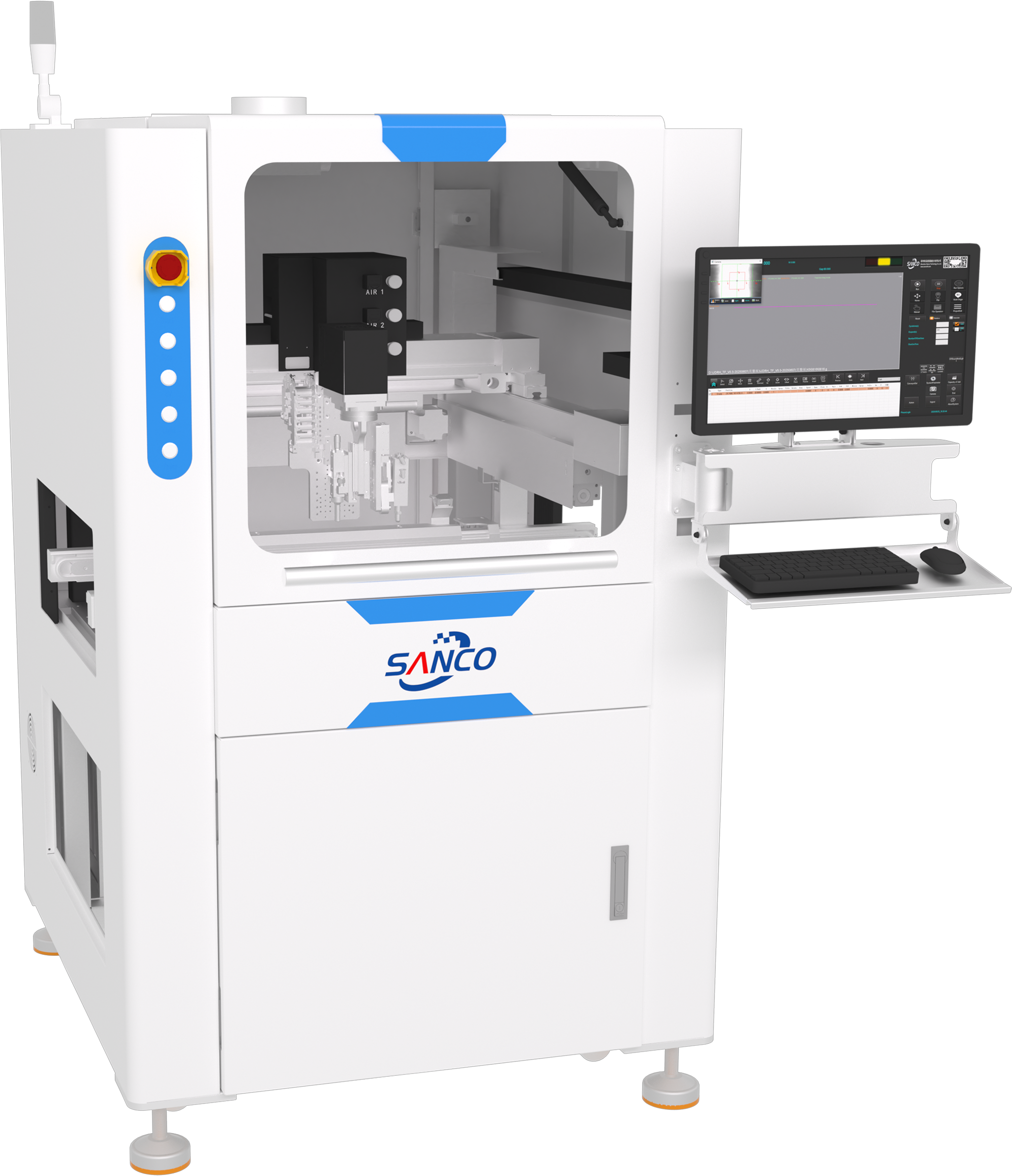

Three-Axis Selective Coating Machine
High-precision selective coating system designed for complex PCB coating applications with flexible valve configurations.
Product Description
The Three-Axis Selective Coating Machine is a high-performance coating system designed for precision surface coating across multiple industries. Equipped with a three-axis motion platform, it ensures smooth operation, high repeatability, and accurate coating paths for complex PCB structures.
The system supports flexible valve configurations and can automatically match different coating valves according to process requirements. It is capable of handling multi-panel boards and complex coating paths, making it suitable for both high-mix and mass production environments.
With advanced motion control, stable structural design, and intelligent software integration, this machine delivers consistent coating quality, high efficiency, and excellent adaptability to different production needs.
Technical Highlights
Key specifications that define excellence
Positioning accuracy
Flexible valve configuration
High-precision motion control
Valve auto-cleaning function
Standard communication
System integration ready
Key Features
Advanced selective coating technology for complex PCB applications
Advanced Motion Control System
Computer + motion controller with Windows OS, featuring fault alarms and intuitive menu display.
Easy Programming & Operation
Manual teaching programming mode allows quick setup and easy operation.
High-Precision Motion Platform
Integral steel platform ensures smooth operation and long-term stability.
High Accuracy Three-Axis Drive
X, Y, Z axes driven by servo motors and ball screws, achieving 0.02mm positioning accuracy.
Automatic Width Adjustment
Ball screw-driven mechanism ensures conveyor rails remain parallel and stable.
Stable Conveyor System
Double stepper motor-driven chain with durable guard structure.
Durable Mechanical Structure
Special aluminum alloy track with stainless steel conveyor chain for long service life.
Flexible Valve Configuration
Supports 1-4 coating valves per machine, switchable according to production requirements.
Automatic Valve Cleaning
Built-in auto-cleaning function ensures long-term coating consistency.
Automatic Reset & Calibration
Automatic reset and calibration during operation to maintain coating accuracy.
Stable Coating Output
Paint container with constant current and pressure output ensures uniform flow.
Optional Metering Pump Feeding
Optional metering pump guarantees 100% accurate paint delivery.
Exhaust & Environmental Control
Equipped with exhaust vents to improve coating environment and safety.
SMEMA Communication Interface
Standard interface for easy integration into automated production lines.
Network Communication Capability
Supports communication with other devices through network ports.
MES System Compatibility (Optional)
MES system integration available based on customer requirements.
Technical Parameter
Complete technical specifications and parameters.
| Item | Technical parameters and description | Item | Technical parameters and description |
|---|---|---|---|
| Model | CM-460 | Transfer speed | 0 -13m/min |
| Dimensions | W1000mm * L1200mm *H17 0 0mm | Conveyor | Special aluminum alloy track + stainless steel chain |
| Weight | 500kg | Width adjust mode | Electric AM + Ball Screw |
| Control method | IPC + sports card | Width adjust speed | 250mm/min |
| Software | Sanco software + Windows system | PCB edge space | 25mm |
| Programmatically | Teaching /keyboard and mouse cover | Communication port | SMEMA connector |
| Number of spindles | X Y Z | Single coating width | 2-30mm |
| Spindle drive | Servo motor + ball screw | Equipment air pressure | 0.5 Mpa |
| Coating stroke | X: 460mm Y: 460mm | Exhaust air volume requirements | 15m 3/min |
| Maximum movement speed | 800mm/sec | Device power | AC220V 50 60HZ |
| Component maximum height | Conveying surface120mm, bottom 120mm | Total equipment power | 2.2kw |
| Repeatability | 0.02mm | LED UV detection light | |
| Number of tracks | 1 | Standard features | LED lighting |
| Working direction | Left→right (standard) Right→left | Waste liquid recovery | |
| Conveying height | 900±20mm | Electrostatic interface |
List of Main Accessories
Complete list of main components and manufacturers.
| Serial number | Product name | Quantity | Manufacturer | Brand |
|---|---|---|---|---|
| 1 | Coating valve | 1 | Sanco | China |
| 2 | Dispensing valve | 1 | Sanco | China |
| 3 | Photoelectric sensor | 3 | Matsushita | Japan |
| 4 | Servo motor | 3 | Mitsubishi /Panasonic/ Nidec | Japan |
| 5 | Stepper motor | 3 | Leadshine | China |
| 6 | Industrial computer | 1 | Advantech /EVOC | China |
| 7 | LCD Monitor | 1 | Lenovo/AOC/dell | China |
| 8 | Motion control card | 1 | Z motion | China |
| 9 | Screw module | 5 | Hiwin | Taiwan |
| 10 | Guide rail | 6 | Hiwin | Taiwan |
| 11 | The electromagnetic valve | 8 | SMC | Japan |
| 12 | Precision pressure regulator | 2 | Air TAC | Taiwan |
| 13 | Cylinder | 6 | Air TAC | Taiwan |
| 14 | Air source treatment components | 1 | AirTAC/Panasoni | Taiwan |
| 15 | Power supply | 1 | Meanwel | Taiwan |
