Dispensing Valve

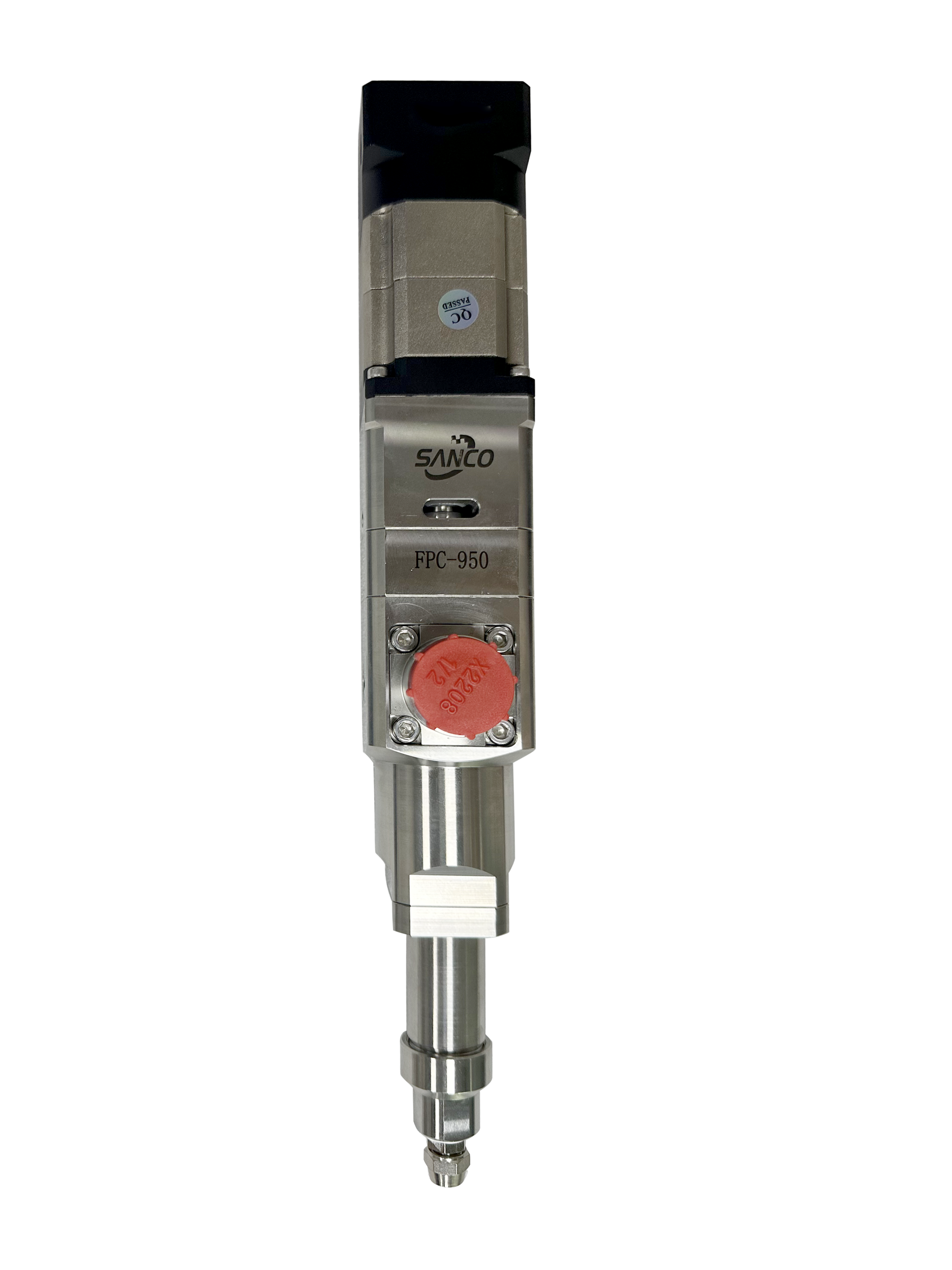

Single Liquid Screw Valve
High-precision screw valve with constant output flow, pulsation-free and low shear delivery, suitable for high viscosity fluids up to 8,000,000cps.
Principle
The structure is combined with rotor and the stator. The liquid in the closed space is transported forward by the rotor rotation. When the rotor rotates continuously in the stator cavity, it moves smoothly and uniformly from the suction end of the pump to the discharge end due to the action of pressure, thus completing the stable delivery of the liquid medium.
KEY FEATURES
Advanced screw valve technology for precise and reliable dispensing
Constant Output Flow
Output flow constant, smoothly, pulsation-free and low shear for consistent dispensing results.
Accurate Measurement
Flow error < 1%, repeatability > 99% for precise and repeatable dispensing operations.
Ultra-Micro Flow
Especially suitable for various ultra-micro flow occasions, minimum trace amount can reach 0.001mL.
High Viscosity Compatible
Suitable for all kinds of high viscosity, high solid granular fluids, up to 8,000,000cps.
Stable Output
Output flow is proportional to rotational speed, unaffected by medium viscosity, pressure, or temperature.
Anti-Dripping Design
Forward and reverse rotation can be adjusted freely, perfectly avoids liquid dripping and drawing.
Simple Structure
Easy to disassemble, easy to clean, easy to assemble for convenient maintenance.
Related Products

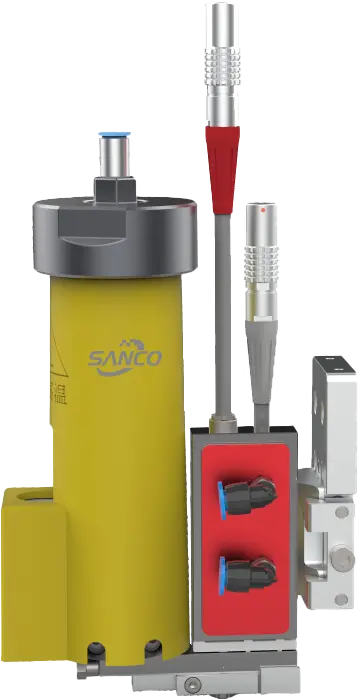

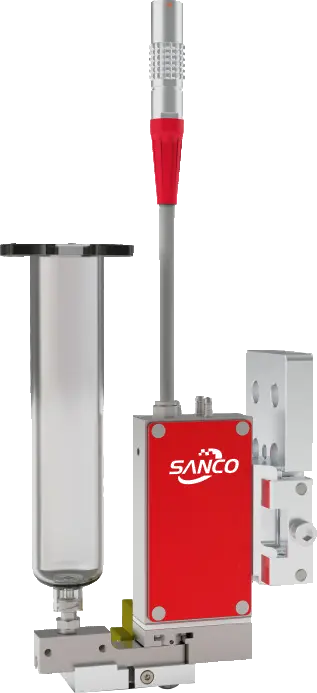

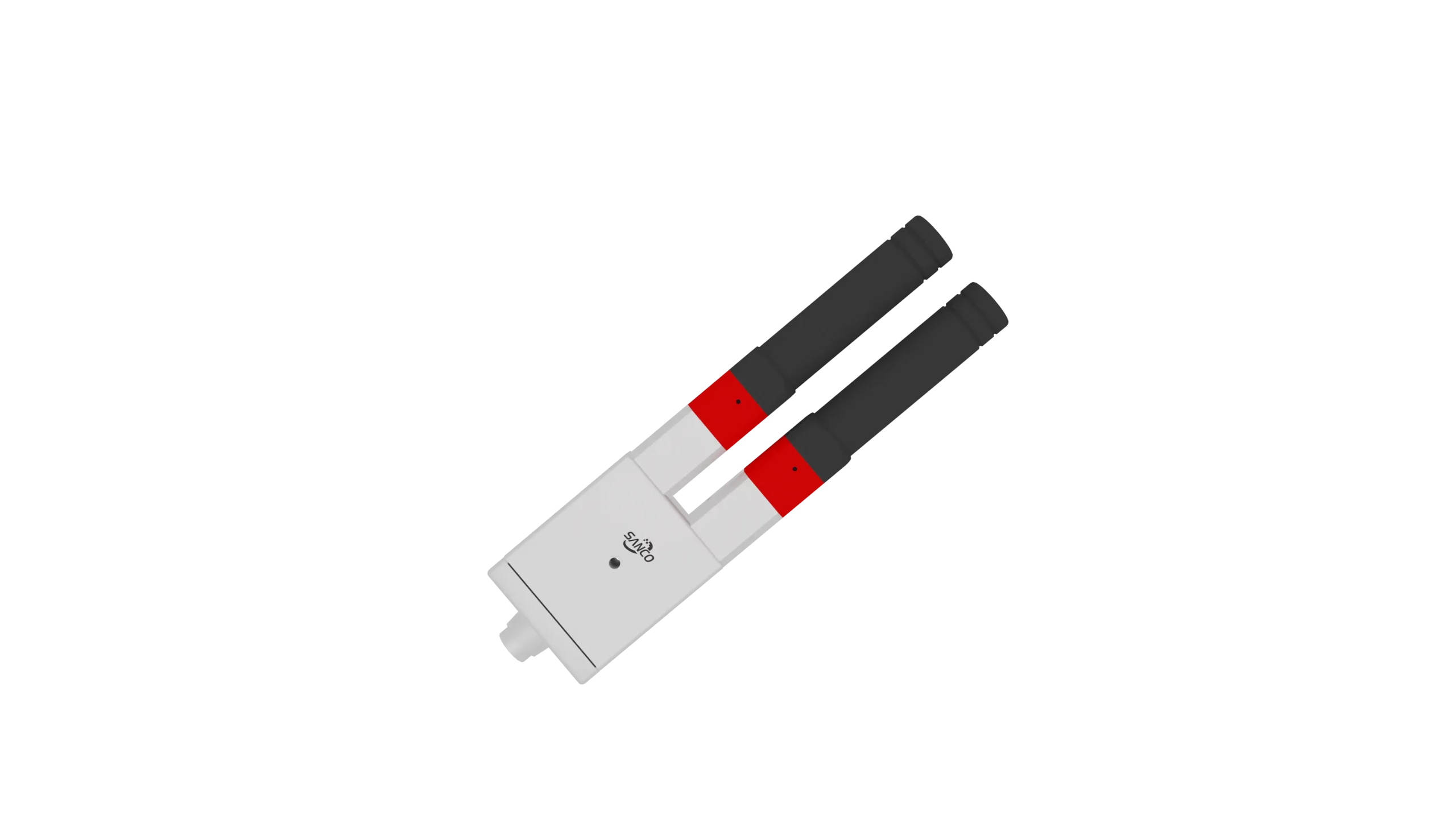

Explore other precision dispensing valves
Need a Precision Dispensing Solution?
Contact our experts to discuss your high viscosity dispensing requirements.
Specification
Complete technical specifications for all model variants.
| Item | PCD-015 | PCD-050 | PCD-150 | PCD-500 | PCD-1500 | PCD-2000 |
|---|---|---|---|---|---|---|
| Dimension | 30 × 60×L275 | 30×60×L290 | 30×60× L300 | 30×60×L300 | 45× 90×L550 | 60× 120×L720 |
| Weight | 1000g | 1050g | 1100g | 1100g | 5.2kg | 7.5kg |
| Viscosity | 0-500,000cps | 0-500,000cps | 0-500,000cps | 0-500,000cps | 0-500,000cps | 0-500,000cp |
| Glue volume per rotation | 0.015ml | 0.05ml | 0.15ml | 0.50ml | 1.5ml | 2.0ml |
| Glue speed (MAX) | 1.8ml/min | 6.0ml/min | 20ml/min | 60ml/min | 225ml/min | 300ml/min |
| Maximum input pressure | 0-6kgf/cm² | |||||
| Maximum output pressure | 20kgf/cm² | |||||
| Speed (rpm) | 1-120rpm | 0-150rpm | ||||
| Precision control | 1% | |||||
| Stator material | Ceramics | |||||
| Contact glue material | SUS/PE/FKM | |||||
| Ambient temperature | 0-40°C | |||||
