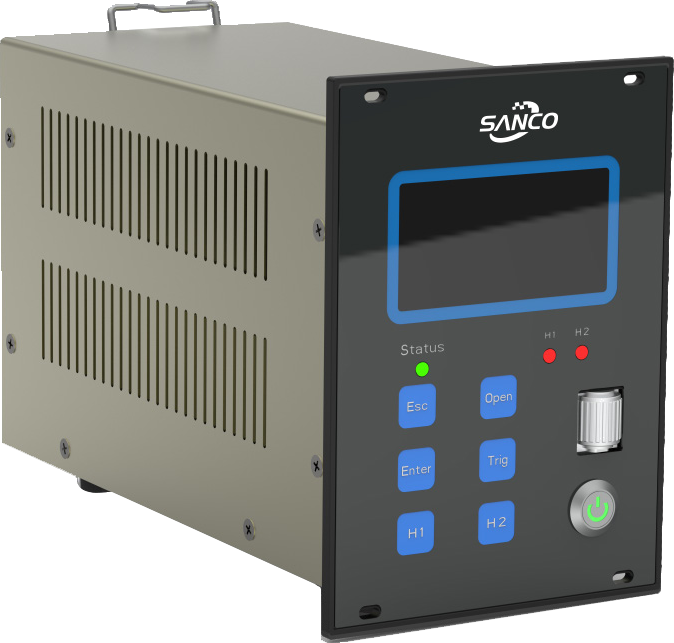

Piezo Valve Controller
Ultra-compact piezo valve controller featuring OLED display, integrated dual heater system, and MODBUS-RTU communication protocol. Designed for precision dispensing control with frequency up to 1kHz and temperature regulation up to 180°C.
Product Description
The Piezo Valve Controller is an advanced dispensing control system featuring OLED display and integrated dual heater functionality. With MODBUS-RTU communication protocol, it achieves high-speed operation up to 1kHz frequency for precision dispensing applications.
The compact integrated design minimizes customer costs while maintaining professional-grade performance. The ultra-thin and compact controller does not take up valuable workspace and is easy to operate with intuitive controls.
The needle heating module precisely controls temperature up to 180°C, while the syringe barrel heating module features advanced thermal insulation and high-separation thermal material to prevent burns during operation.
Industry Applications
Versatile dispensing control for various processes
Underfill
Precision Coating
Pin Encapsulation
SMT Package
POP Package
Technical Highlights
Key specifications that define excellence
Compact Dimension
Lightweight Design
Max Frequency
Working Power
Highest Output
Product Advantages
Advanced features for precision dispensing control
OLED Display with Dual Heater
Integrated OLED display with dual heater system, MODBUS-RTU communication protocol, operating speed up to 1kHz.
Compact Integrated Design
Ultra-thin and compact design minimizes customer costs and does not take up workspace, easy to operate.
Precision Needle Heating
The needle heating module precisely controls temperature, with heating capability reaching 180°C for optimal dispensing.
Advanced Syringe Heating
Syringe barrel heating module features better thermal insulation and special high-separation thermal material to prevent burns.
MODBUS-RTU Protocol
Standard MODBUS-RTU communication protocol with four-pin aviation plug for seamless system integration.
High Precision Control
Temperature precision of ±1°C ensures consistent and repeatable dispensing results for critical applications.
Structure Specification
Complete structure specifications and material details.
| Dimension | Net weight | Max frequency | Working power | Highest output |
|---|---|---|---|---|
| 173*89*110mm | 1.6Kg | 1K HZ | 100V~230V | 200W |
| Heating range | Protocol | Needle 180° heating | Syringe 180° heating | Heating precision |
| 24V | MODBUS-RTU | Four-pin aviation plug | Five-pin aviation plug | ±1°C |
