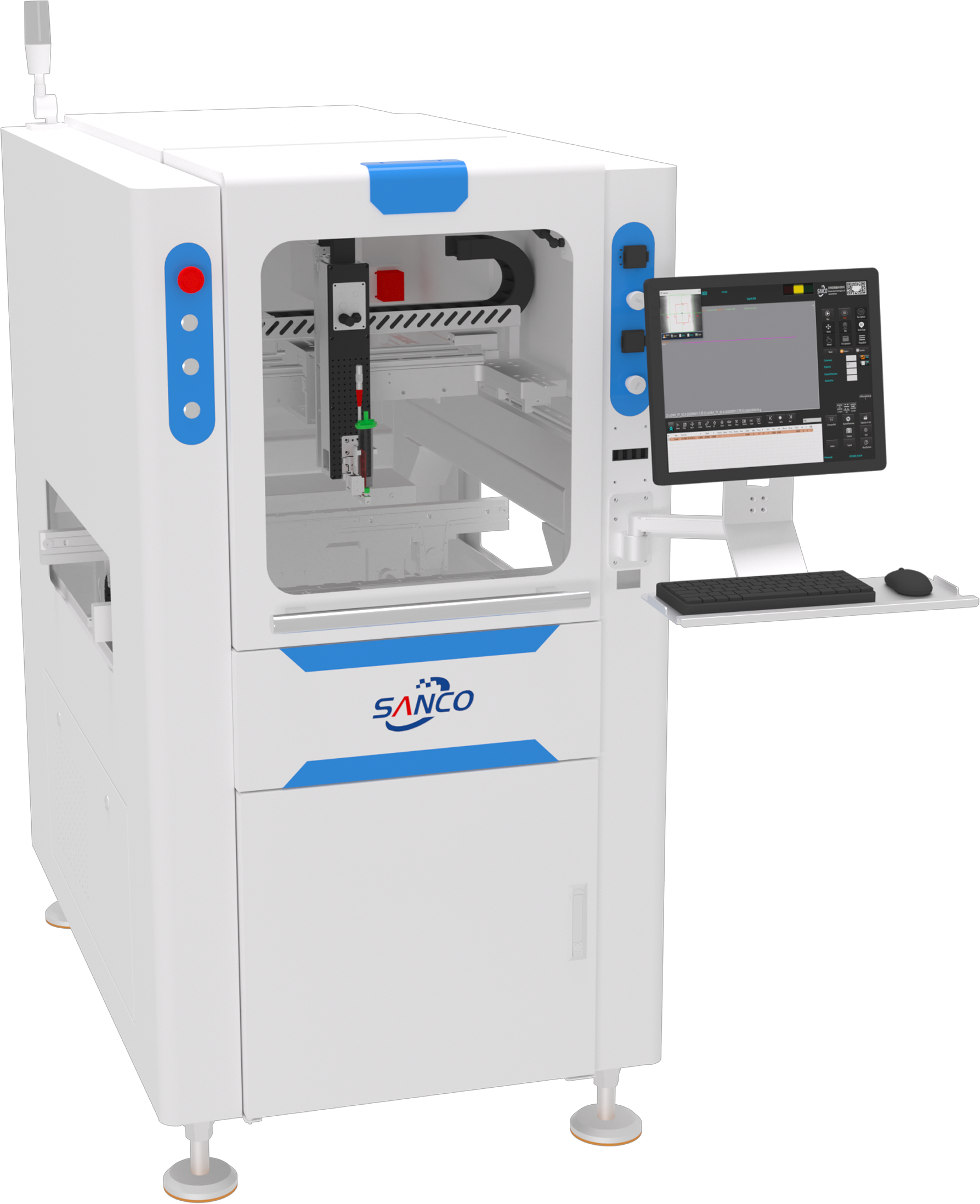

LM Series Inline High Speed Dispensing Machine

Professional inline dispensing solution with linear motor drive, CCD vision positioning, and high-speed precision control for demanding manufacturing applications.

2000mm/s ±0.01mm CE Certified

LM Series Inline High Speed Dispensing Machine

KEY FEATURES

High Performance

Maximum speed 2000mm/s
Repeatability accuracy ±0.01mm
Linear motor X Y, Servo motor Z
Optional weighting module with accuracy +/-0.1mg

Smart Control

IPC + Motion control card
Sanco software + Windows 10 OS
CCD Vision Positioning System
SMT file or online vision programming

Quality & Safety

CE certified safety standard
Cast iron chassis & gantry weighting 1000kg
Sound and light alarm system
Vacuum valve cleaning device

Applications

Precision dispensing for diverse manufacturing needs across electronics and semiconductor industries.

Thermal Adhesive

SMT Underfill

Component Packaging

Solder Paste

Red Glue

Black Glue

Semiconductor Packaging

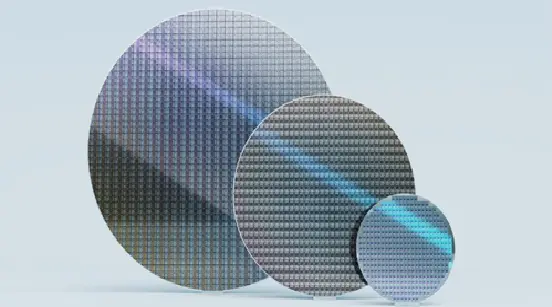

Wafer Fixing

Choose Your Configuration

Three precision-engineered models designed to meet different production scales.

Technical Specifications

Detailed Parameters

Complete technical specifications for all model variants.

Swipe left/right to view all models

Specification	LM400	LM1000	LM1500
Dimension	L=850mm W=1400mm H=1600mm	L=1750mm W=1400mm H=1600mm	L=2250mm W=1400mm H=1600mm
Net Weight	1000kg	1200kg	1400kg
Control	IPC + Motion control card	IPC + Motion control card	IPC + Motion control card
Software	Sanco software + Windows	Sanco software + Windows	Sanco software + Windows
Program	SMT file or online vision programming	SMT file or online vision programming	SMT file or online vision programming
Number of Spindles	X Y Z	X Y Z	X Y Z
Spindle Drive	Linear motor X Y, Servo motor Z	Linear motor X Y, Servo motor Z	Linear motor X Y, Servo motor Z
Distance Range	X:400 Y:400 Z:50mm	X:1000 Y:400 Z:50mm	X:1500 Y:400 Z:50mm
Valve Quantity	1 pcs (Standard)	1 pcs (Standard)	1 pcs (Standard)
Maximum Speed	2000mm/s	2000mm/s	2000mm/s
Repeatability Accuracy	±0.01mm	±0.01mm	±0.01mm
Paint Volume	30CC	30CC	30CC
Paint Detect	Auto detection	Auto detection	Auto detection
Interface	SMEMA	SMEMA	SMEMA
Direction	left→right (Standard) □ right→left	left→right (Standard) □ right→left	left→right (Standard) □ right→left
Valve Cleaning Device	Vacuum cleaning	Vacuum cleaning	Vacuum cleaning
Alarm	Menu + sound and light alarm	Menu + sound and light alarm	Menu + sound and light alarm
Conveyor	Belt conveyor	Belt conveyor	Belt conveyor
Speed	stepper motor 2–5m/min	stepper motor 2–5m/min	stepper motor 2–5m/min
Width	50–400mm	50–400mm	50–400mm
Power Supply	220V 50/60HZ	220V 50/60HZ	220V 50/60HZ
Air Pressure	≥0.65Mpa	≥0.65Mpa	≥0.65Mpa
Safety Standard	CE	CE	CE
Total Power	2.5KW	2.5KW	2.5KW
