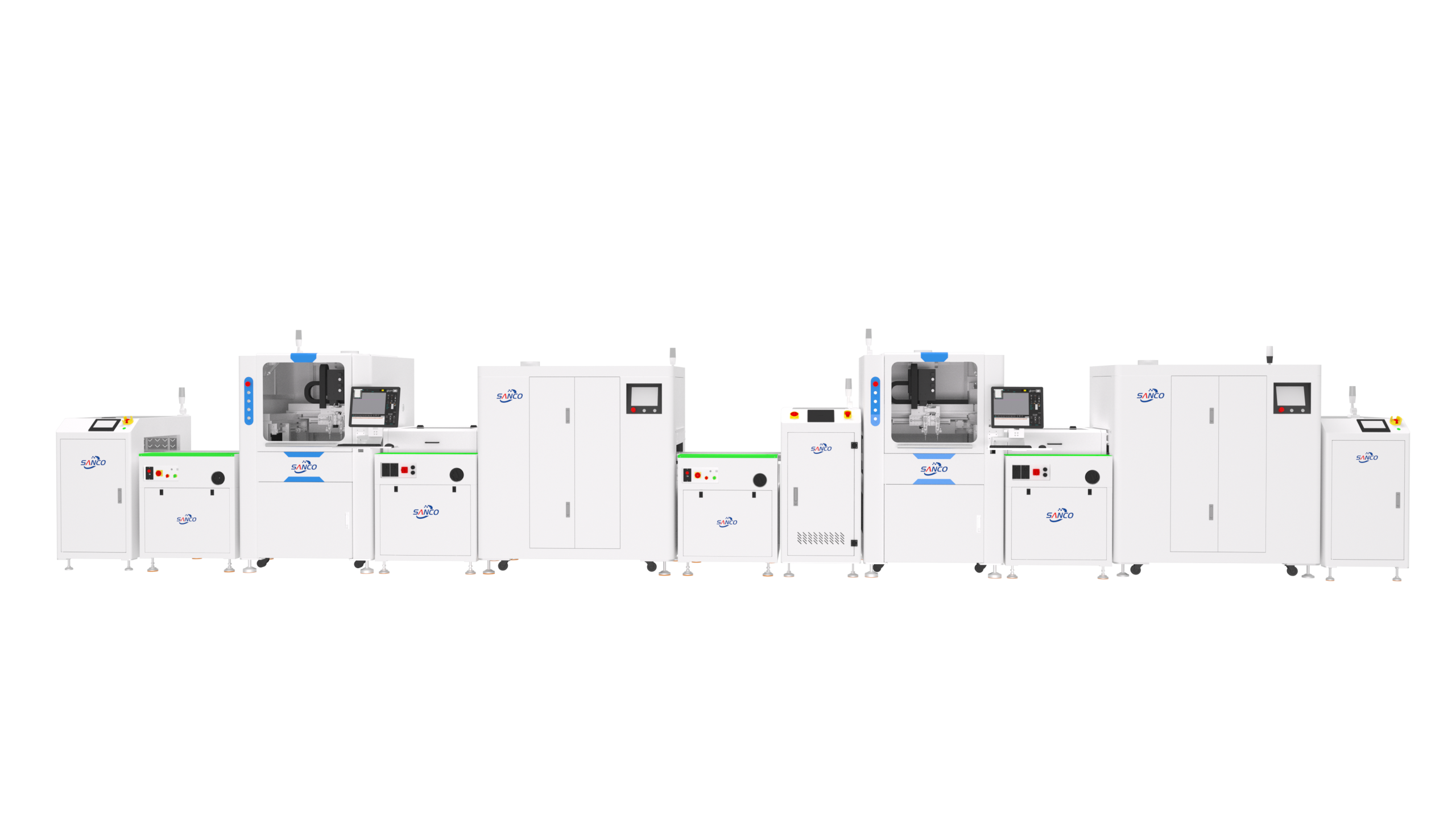

Double-side Online PCBA Conformal
Coating Line Solution
Complete double-side conformal coating solution featuring UV curing technology for fast, efficient processing. This integrated production line combines precision coating, UV inspection, and rapid curing to deliver consistent high-quality results.
Watch Our Production Line in Action
Experience the precision and efficiency of our integrated PCBA conformal coating solution
Line Equipment Components
Click on each equipment to view detailed specifications. Our integrated solution combines precision dispensing, UV/IR curing, and intelligent material handling systems.
Production Process Flow
Click on each step to view detailed equipment specifications
Line Equipment Components
Elevator (Lift IN)
Automatic PCB elevator system for smooth board loading into the production line with precise height adjustment.
Conveyor
Device connection and transmission between SMT devices with touch screen all-in-one operation interface.

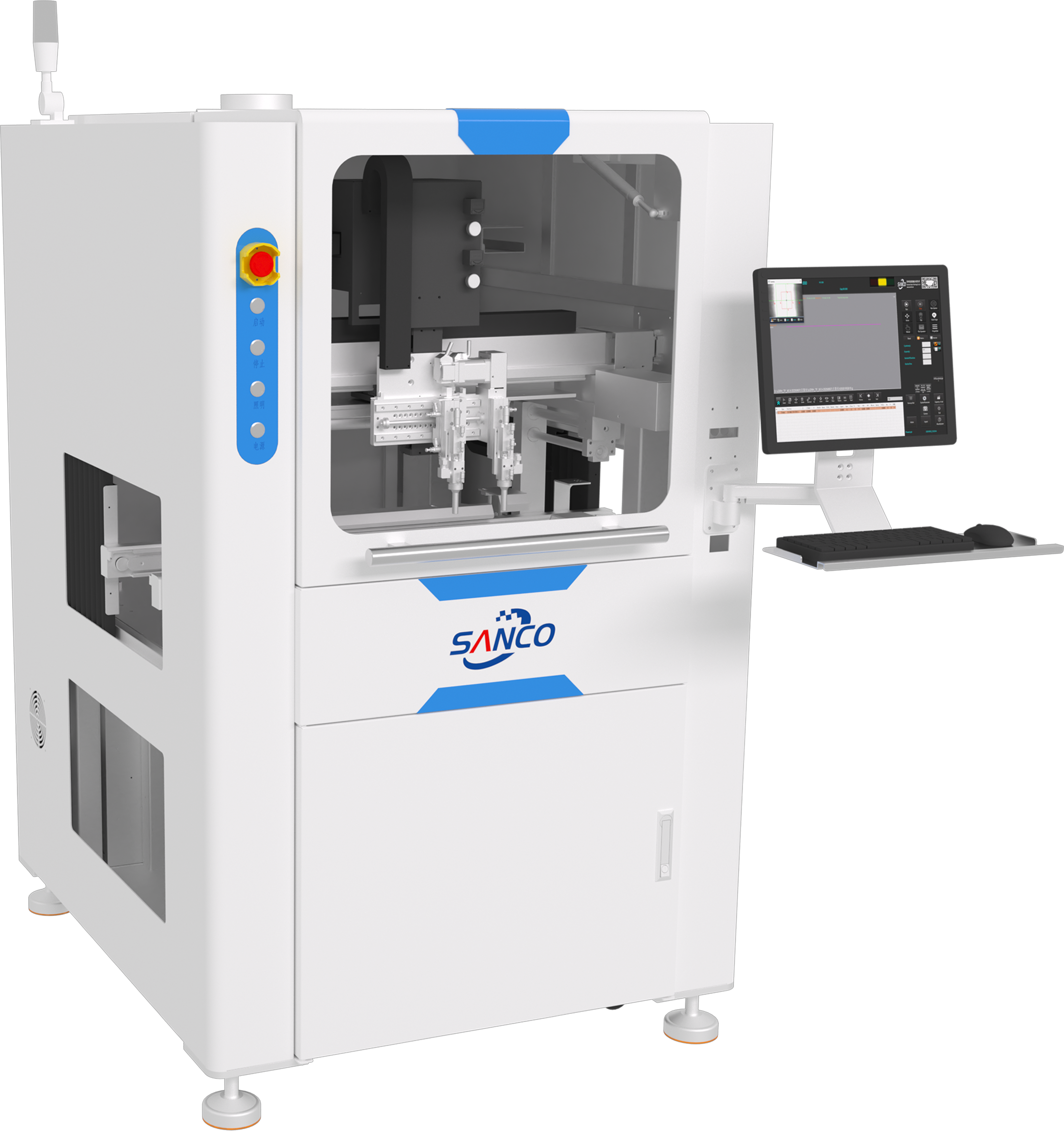

Three Axial Coating Machine
Advanced selective conformal coating system with three-axis precision movement for complex PCB geometries.
UV Inspection Conveyor
Specialized conveyor with integrated UV lighting for real-time coating quality inspection and verification.
UV Curing Oven
High-efficiency UV curing system with precise temperature control for rapid conformal coating polymerization.
PCB Flipper
Automatic PCB board flipper for efficient double-sided processing with precise 180° rotation mechanism.
Elevator (Lift OUT)
Automatic PCB unloading system for smooth board removal from the production line with buffer management.
