Coating Machine

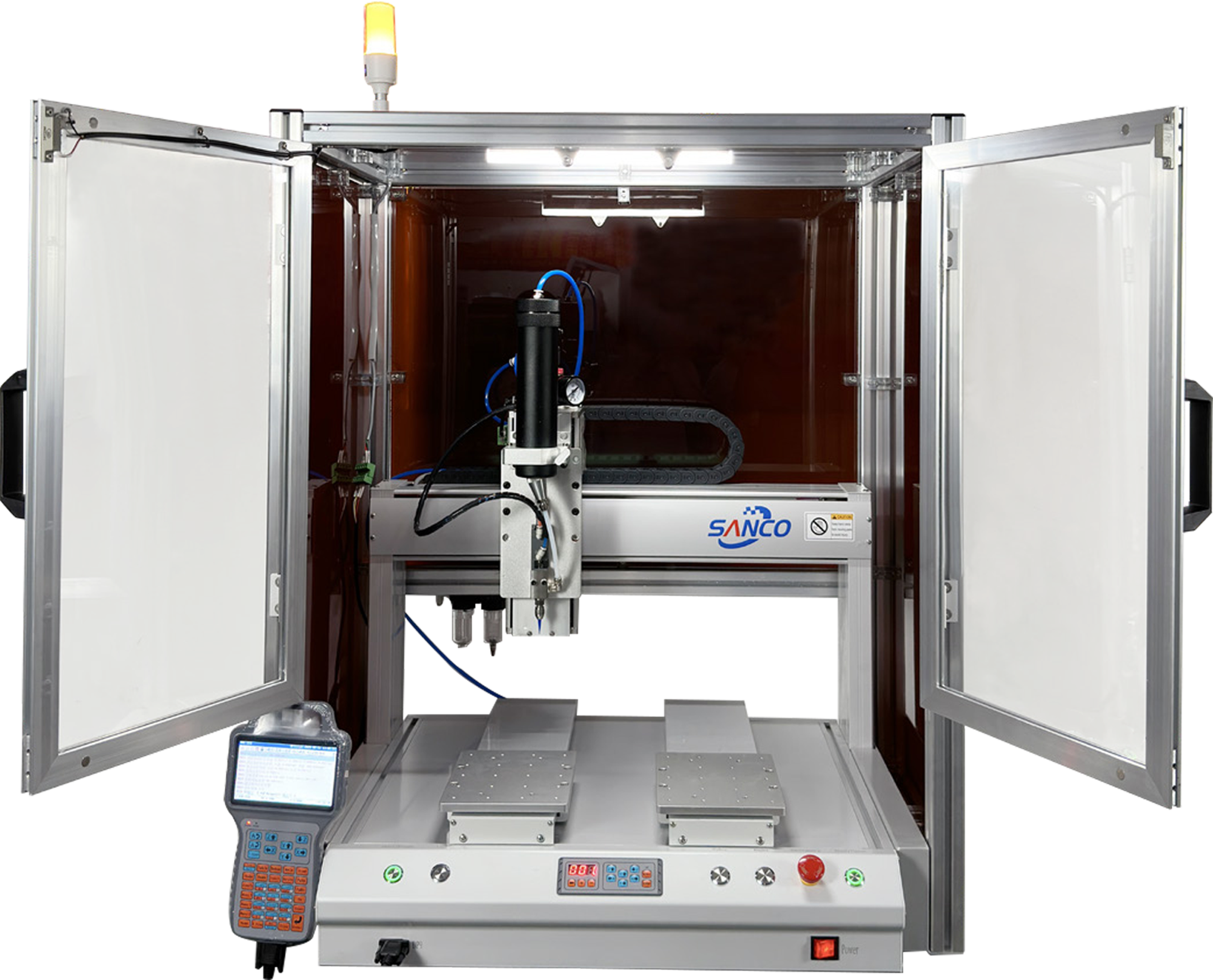

Desktop Coating Machine
TS Series Desktop Dispenser - High-tech dispensing solution that integrates precision mechanical control with advanced dispensing technology.
Product Description
The TS Series Desktop Semi-Automatic Dispensing Machine is a high-tech dispensing solution that integrates precision mechanical control with advanced dispensing technology. Designed for cost-effective and accurate dispensing operations, it offers strong functionality, simple programming, and convenient operation.
Through coordinated control of the motion controller, motor, precision motion platform, and system software, the working platform moves precisely along preset trajectories. Combined with the built-in glue supply controller, glue storage tank, dispensing valve, or dispensing needle, the system accurately controls glue extrusion to realize a stable and efficient dispensing process.
Its compact desktop design makes it especially suitable for small to medium batch production, laboratories, and R&D environments.
Technical Highlights
Key specifications that define excellence
No external computer needed
Professional control system
Intuitive and easy setup
Optional multi-angle head
Space-saving design
Wide valve compatibility
Key Features
Precision desktop dispensing technology for efficient production
Stand-Alone Operation
TS Series three-axis dispensing machine operates independently without external computer. Easy to install and simple to operate.
Humanized Teaching Box Programming
Equipped with intuitive teaching box for quick and flexible program setup.
Graphic Key Teaching System
Graphic key design allows easy path setup, matrix copying, offset modification, and correction point adjustments. Supports program transfer between dispensers.
Professional 3D Arc Interpolation Control
Advanced 3D arc interpolation control system ensures smooth and precise dispensing paths.
Wide Valve Compatibility
Compatible with various dispensing valves to meet different dispensing process requirements.
Optional Multi-Angle Dispensing
Optional dispensing head with 360° rotation and 45° tilt, enabling flexible operation for complex dispensing applications.
Technical Parameter
Complete technical specifications for all model variants.
| Item | Specification and description | ||
|---|---|---|---|
| TS331 | TS441 | TS5331 | |
| Model No. | TS331 | TS441 | TS5331 |
| Dimension | L = 580mm W = 520mm H = 570mm |
L = 688mm W = 620mm H = 570mm |
L = 588mm W = 720mm H = 570mm |
| Net weight | 65kg | 70kg | 75kg |
| Maximum Speed (X/Y/Z) | 500mm/s(X/Y),300mm/s(Z) | ||
| Repeatability | ±0.05mm | ||
| Position accuracy | ±0.05mm | ||
| Z maximum load | 3kg | ||
| Orbit parallelism | ±0.05mm | ||
| Distance Range | X:280Y:280Z:100(mm) | X:380 Y: 380 Z:100( mm | X:230 Y1&Y2:280 Z:100(mm) |
| drive mode | Transmission mode Stepper motor + synchronous belt + linear slide | ||
| IO | 8 input 8 output | ||
| Program storage | 128M | ||
| Programming | Handheld editor | ||
| Power | AC220V/50HZ/0.5KW | ||
| Environment | -20 degrees to 40 degrees, relative humidity 20%-90% | ||
