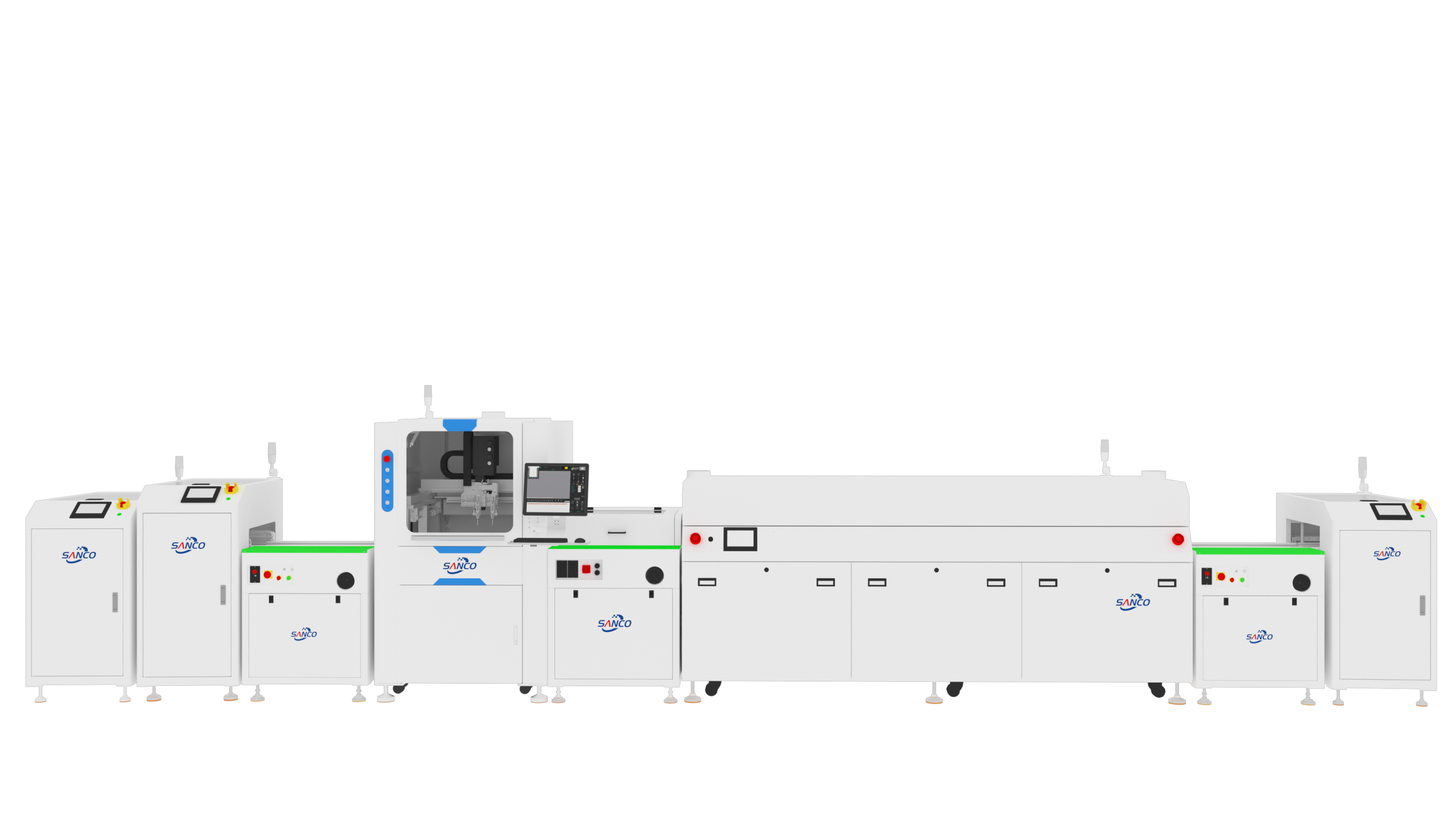

compact and Economic Double Sides
Coating Line
Complete single-side conformal coating solution featuring IR curing technology for fast, efficient processing. This integrated production line combines precision coating, UV inspection, and rapid curing to deliver consistent high-quality results with maximum throughput efficiency.
Watch Our Production Line in Action
Experience the precision and efficiency of our integrated PCBA conformal coating solution
Line Equipment Components
Click on each equipment to view detailed specifications. Our integrated solution combines precision dispensing, UV/IR curing, and intelligent material handling systems.
Production Process Flow
Click on each step to view detailed equipment specifications
Line Equipment Components
Elevator (Lift IN)
Automatic PCB elevator system for smooth board loading into the production line with precise height adjustment.
PCB Flipper 翻板机
Automatic PCB board flipping system for double-sided processing with precise rotation control.
Conveyor
Device connection and transmission between SMT devices with touch screen all-in-one operation interface.
Four Axial Coating Machine
Advanced four-axis selective conformal coating system with enhanced precision movement for complex PCB geometries.
UV Inspection Conveyor
Integrated UV inspection system for real-time coating quality verification before curing process.
IR Curing Oven
Infrared curing oven with precise temperature control for rapid conformal coating curing and polymerization.
Elevator (Lift OUT)
Automatic PCB unloading elevator for smooth board exit with buffer storage capability.
